The Anti-Reflection coating can reduce the intensity of the reflected light, thereby increasing the intensity of the transmitted light and making the optical system image clearer. It has a wide range of applications in LED Display, Touch Screen, LCD Projection System, Instrumentation Window, Fingerprint Analyzer Window, Monitor Protection Mirror, Antique Frame Window, High-end Watch Window, Eyepiece, Silk Screen Optical glass products.
Single wavelength AR(UV)
| Angle of Incidence: 0ºor45º | |
| Reflectance (λ>255 nm): Unpolarized；R ≤ 0.25% at 0º ， R ≤ 0.5% at 45º | Reflectance (λ≤255nm): Unpolarized；R ≤ 1.0% at 0º ， R ≤ 1.5% at 45º |
| Damage Threshold (λ> 255 nm): 1.0 J/cm², 10ns pulse | Damage Threshold (λ> 355 nm): 3.0 J /cm²，10 ns pulse |
Single wavelength AR(VIS/NIR)
| Angle of Incidence: 0º or 45º | Reflectance: Unpolarized；R ≤ 0.25% at 0º ， R ≤ 0.5% at 45º |
| Damage Threshold (532nm): 5 J /cm²，10ns pulse | Damage Threshold (1064nm): 10 J /cm²，10ns pulse |
Single wavelength AR(IR)
| Angle of Incidence: 0º or 45º | Transmittance: Unpolarized；T>99.5% at 0º ， T>99% at 45º |
| Damage Threshold (λ>10.6μm): 2 J /cm²，10 ns pulse |
Broadband AR(VIS/NIR)
| Angle of Incidence: 0º or 45º | Reflectance: Unpolarized ；Ravg<0.5％ at 0º ， Ravg<1.0％ at 45º |
Broadband AR(IR)
| Angle of Incidence: 0º or 45º | Transmittance: Unpolarized ；Tavg>97% at 0º ， Tavg>96% at 45º |
| Damage Threshold: 2 J /cm²，10 ns pulse |
Multi-wavelength AR
| Angle of Incidence: 0º | Reflectance: R≤0.5％ |
| Damage Threshold: 5J /cm²，10ns pulse |

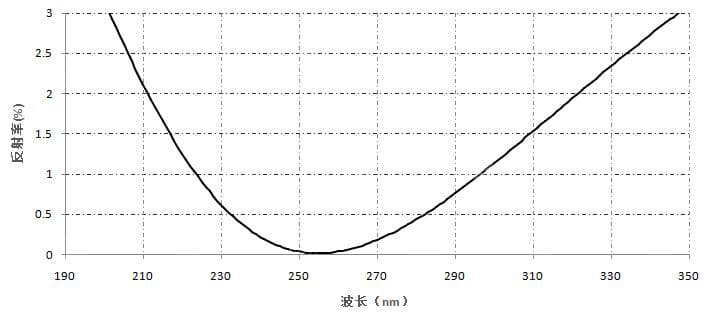

Single wavelength AR(UV)

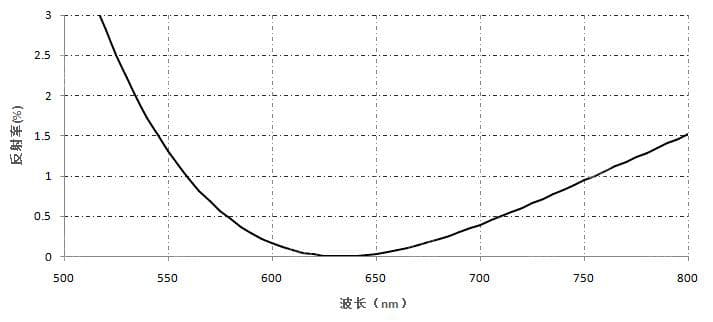

Single wavelength AR(VIS/NIR)

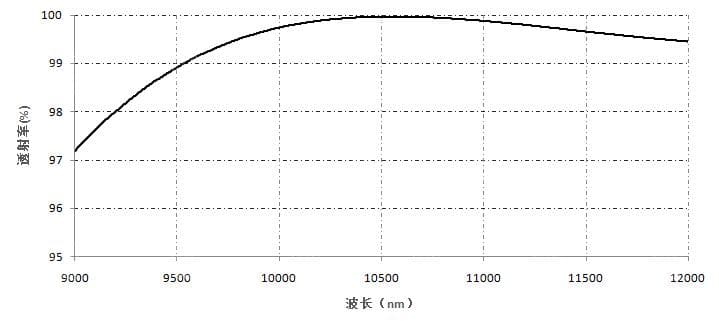

Single wavelength AR(IR)

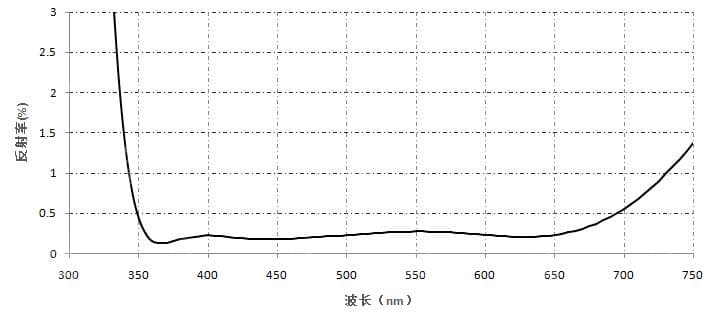

Broadband AR(VIS/NIR)

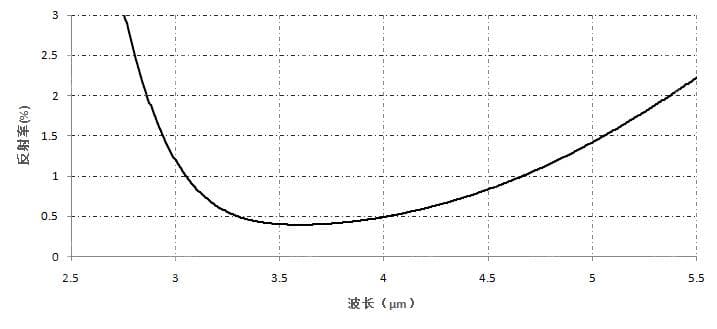

Broadband AR(IR)

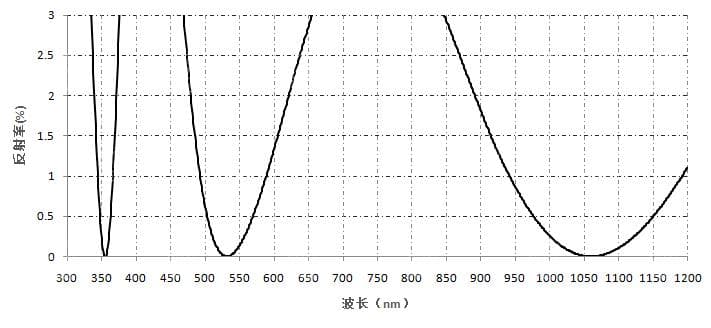

Multi-wavelength AR
