High-Reflection coating is an important optical coating that is widely used. The High-Reflection coating processed by Boxin is not only durable but also has strong resistance to Laser Damage.

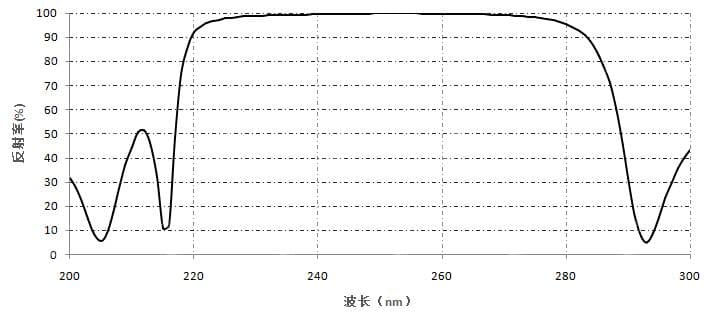

Narrowband HR(UV)
| Angle of Incidence: 0º or 45º | |
| Reflectance (λ<255nm): Unpolarized；R≥97％ at 0º ， R≥96％ at 45º | Reflectance (λ>255nm): Unpolarized；R≥99.7％ at 0º ， R≥99.4％ at 45º |
| Damage Threshold (λ<255nm): 1.5J /cm²，10ns pulse | Damage Threshold(λ> 255nm): 3J /cm²，10ns pulse |

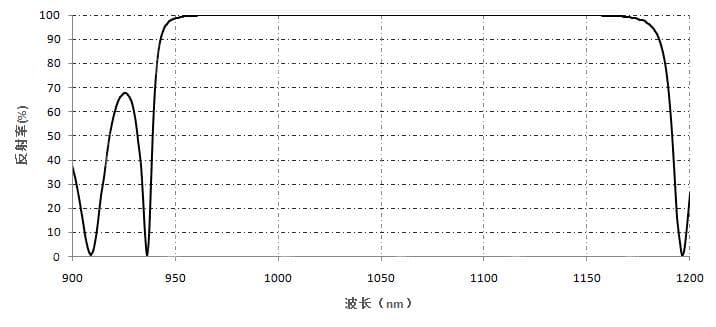

Narrowband HR(VIS/NIR)
| Angle of Incidence: 0º or 45º | Reflectance: Unpolarized；R≥99.7％ at 0º ， R≥99.4 ％ at 45º |
| Damage Threshold (1064nm): 10J /cm²，10ns pulse |

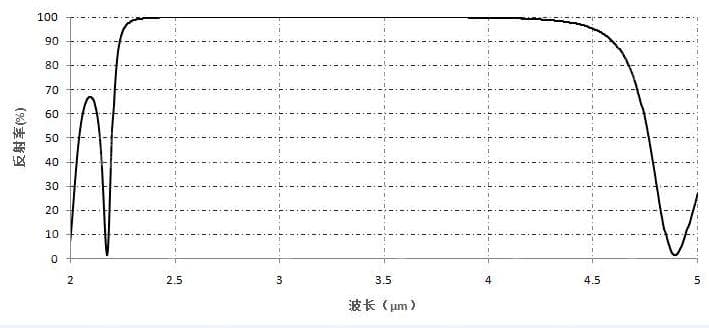

Narrowband HR(IR)
| Angle of Incidence: 0º or 45º | Reflectance: Unpolarized；R≥99.5％ at 0º ，R≥99.0％ at 45º |
| Damage Threshold: 2 J / cm²，10ns pulse |

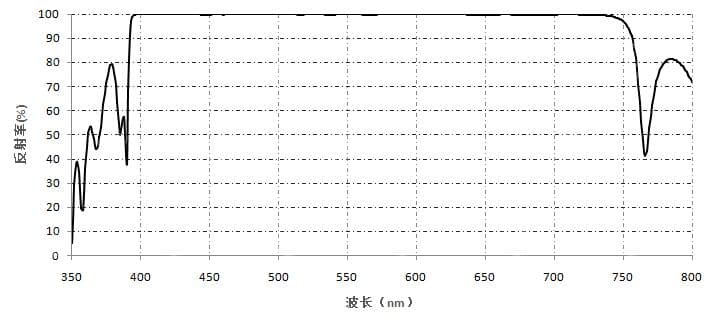

Broadband (VIS/NIR)
| Angle of Incidence: 0º or 45º | Reflectance: Ravg>99％ at 0º ，Ravg>98.5％ at 45º |

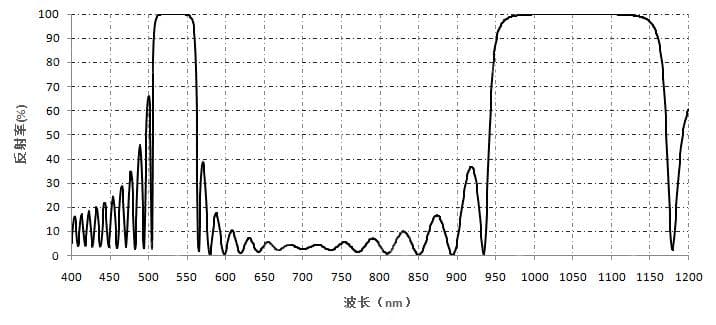

Multi-wavelength HR
| Angle of Incidence: 0º or 45º | |
| Reflectance (1064nm): Unpolarized；R≥99.5％ at 0º ， R≥99.4 at 45º | Reflectance (532nm): Unpolarized；R≥99％ at 0º ， R≥98.5％ at 45º |
Narrowband HR(UV)
Narrowband HR(VIS/NIR)
Narrowband HR(IR)
Broadband (VIS/NIR)
Multi-wavelength HR
