The Metal coating has good plasticity, toughness and strength, and adaptability to the environment. Boxin can customize various metallic coating layers according to customers’ needs, including: Pure aluminum, Protective Aluminum, Reinforced Aluminum, Protective Silver, Reinforced Silver, Pure Gold, Protective Gold and Reinforced Gold.
Bare Al
| Angle of Incidence: 0º or 45º | Reflectance (λ: 185-400nm): Unpolarized；Ravg>90％ |
| Reflectance (λ: 400-850nm): Unpolarized；Ravg>88％ | Reflectance (λ: 0.85μm -20μm): Unpolarized；Ravg>97％ |
Protection Al
| Angle of Incidence: 0º or 45º | Reflectance (λ: 185-400nm): Unpolarized；Ravg>90％ |
| Reflectance (λ: 400-850nm): Unpolarized；Ravg>88％ | Reflectance (λ: 0.85μm -20μm): Unpolarized；Ravg>97％ |
Reinforce Al
| Angle of Incidence: 0º or 45º | Reflectance(λ: 450-700nm): Unpolarized；Ravg>93％ |
Protective silver
| Angle of Incidence: 0º or 45º | Reflectance (λ: 0.4μm -20μm): Unpolarized；R>90％,Ravg>97% |
Reinforce silver
| Angle of Incidence: 0º or 45º | Reflectance (λ: 500nm -1000nm): Unpolarized；R>96％,Ravg>98.5% |
Bare gold
| Angle of Incidence: 0º or 45º | Reflectance (λ: 0.65μm -20μm): Unpolarized；R>95％,Ravg>99% |
Protective gold
| Angle of Incidence: 0º or 45º | Reflectance (λ: 0.65μm -20μm): Unpolarized；R>95％,Ravg>99% |
Reinforce gold
| Angle of Incidence: 0º or 45º | Reflectance (λ: 700nm -900nm): Unpolarized；R>98％,Ravg>99% |

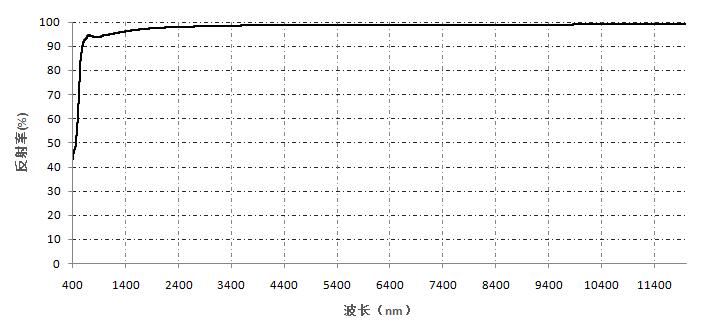

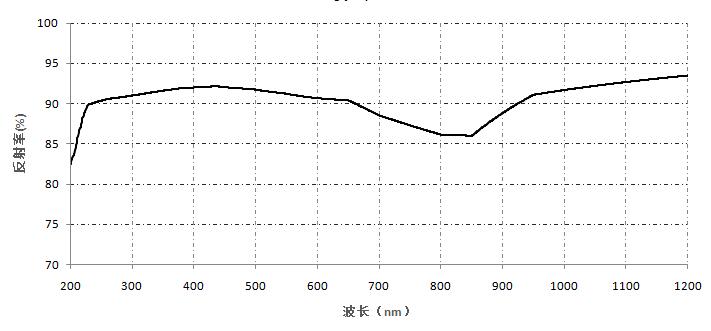

Bare Al

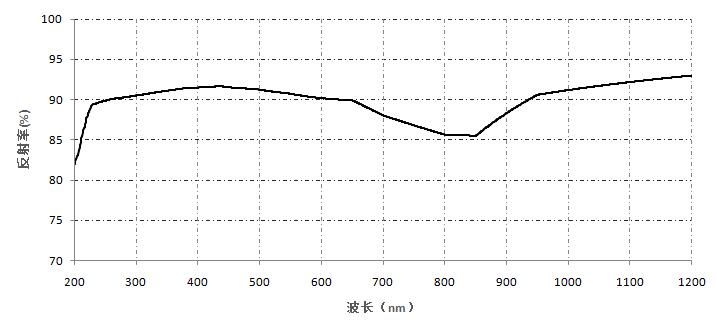

Protection Al

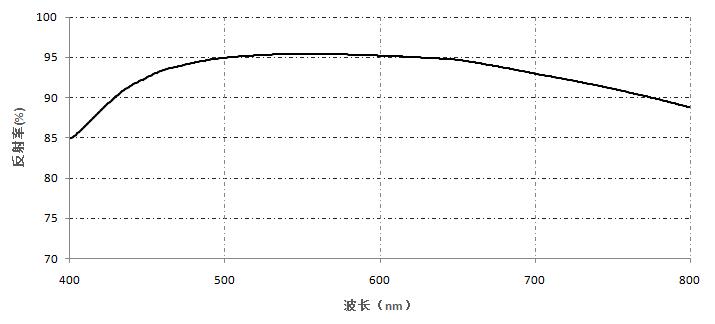

Reinforce Al

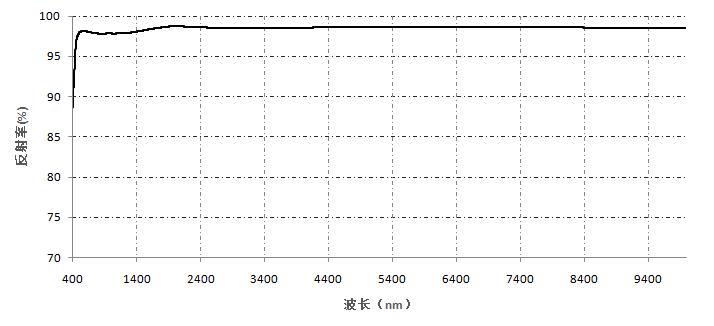

Protective silver

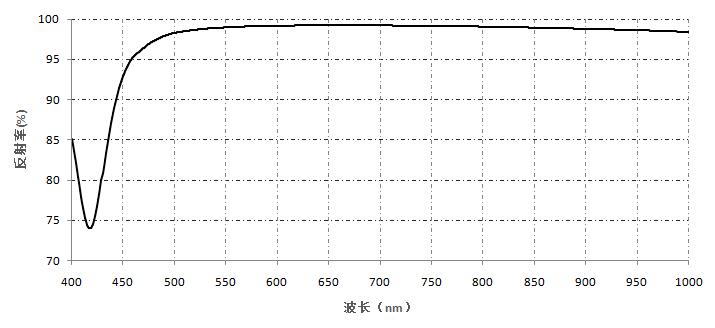

Reinforce silver

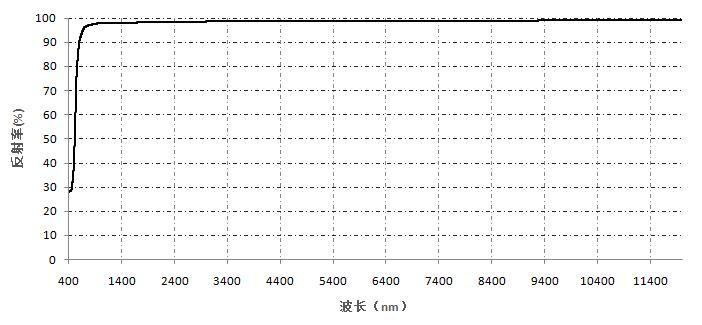

Bare gold
Protective gold

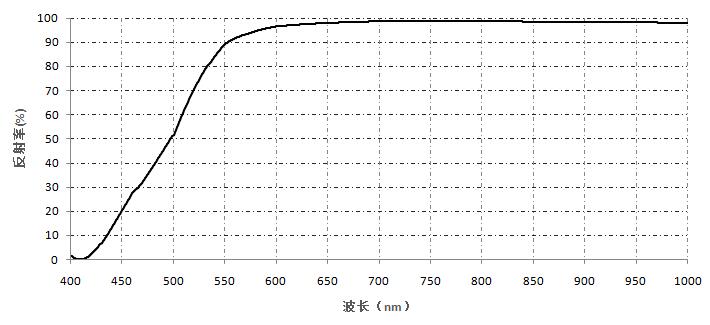

Reinforce gold
