A Polarized coating refers to a type of Optical coating used to generate polarized light or to suppress the polarization effect of a coating. It has a wide range of applications in Optical Systems, Optical Instruments and Laser Systems.

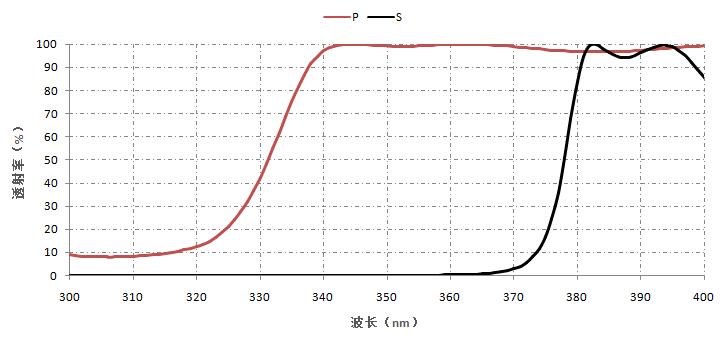

Prism polarized spectroscopic coating(UV)
| Angle of Incidence: 45º | Reflectance: Rs > 99.5％ |
| Transmittance: Tp > 95％ | Extinction Ratio: Tp / Ts > 200：1 |

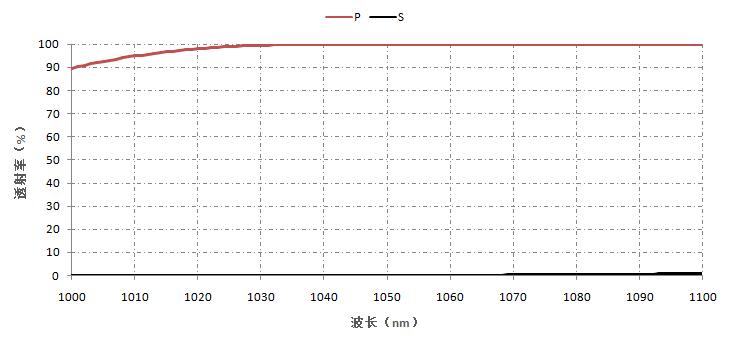

Prism polarized spectroscopic coating(VIS/NIR)
| Angle of Incidence: 45º | Reflectance: Rs ≥ 99.9％ |
| Transmittance: Tp ≥ 95％ | Extinction Ratio: Tp / Ts ≥1000：1 |

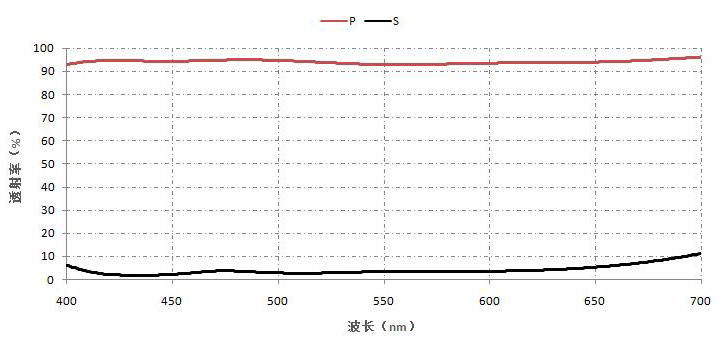

Prism broadband polarized spectroscopic coating(VIS/NIR)
| Angle of Incidence: 45º | Reflectance: Rs ≥ 99.5％ |
| Transmittance: Tp ≥ 95％ | Extinction Ratio: Tp / Ts ≥200：1 |

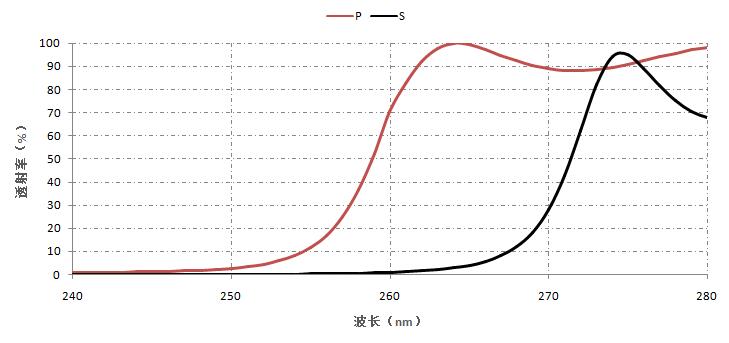

Flat polarized spectroscopic coating(UV)
| Angle of Incidence: Brewster’s Angle | Reflectance: Rs ≥ 99％ |
| Transmittance: Tp ≥ 93％ | Extinction Ratio: Tp / Ts ≥100：1 |
Flat polarized spectroscopic coating(VIS/NIR)
| Angle of Incidence: Brewster’s Angle | Reflectance: Rs ≥ 99％ |
| Transmittance: Tp ≥ 95％ | Extinction Ratio: Tp / Ts ≥100：1 |
Flat polarized spectroscopic coating(IR)
| Angle of Incidence: Brewster’s Angle | Reflectance: Rs ≥ 99％ |
| Transmittance: Tp ≥ 90％ | Extinction Ratio: Tp / Ts ≥100：1 |
