Boxin can customize various Depolarizing coating according to customers’ needs. Including: Prism Depolarization Beam Splitter coating (UV / VIS / NIR), Flat Depolarization Beam Splitter coating (UV / VIS / NIR), Prism Broadband Depolarization Beam splitter coating (VIS / NIR), Flat Depolarizing Beam Splitter coating (IR). It has a wide range of applications in Interferometers and various Imaging Instruments.
Prism depolarized spectroscopic coating(UV/VIS/NIR)
| Angle of Incidence: 45º | Reflectance (400 nm – 2μm): 10％≤R≤90％±5％ ；| R s – R p | ≤5％ |
Flat depolarized spectroscopic coating(UV/VIS/NIR)
| Angle of Incidence: 45º | Reflectance (400nm – 2μm): 10％≤R≤90％±5％；| R s – R p | ≤5％ |
Prism broadband depolarized spectroscopic coating(VIS/NIR)
| Angle of Incidence: 45º | Reflectance: Ravg = 45％±5％ |
| Absorption: <12％ |
Flat depolarized spectroscopic coating(IR)
| Angle of Incidence: 45º | Reflectance: 30％≤R≤70％±5％；| R s – R p | ≤5％ |

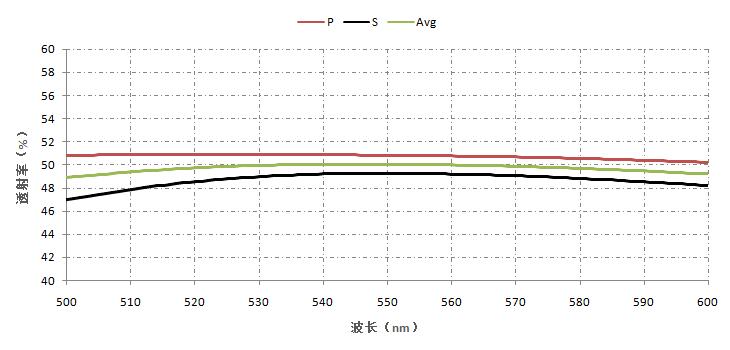

Prism depolarized spectroscopic coating(UV/VIS/NIR)

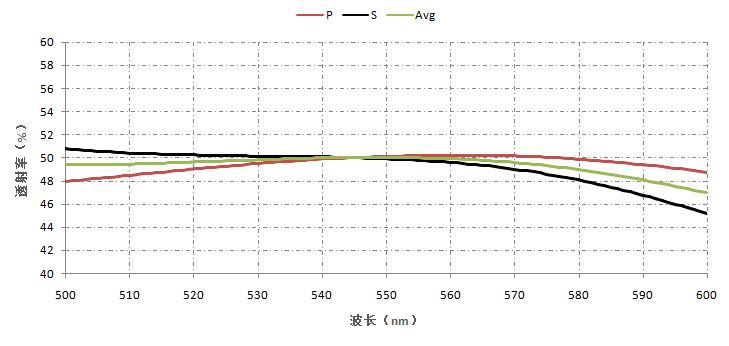

Flat depolarized spectroscopic coating(UV/VIS/NIR)

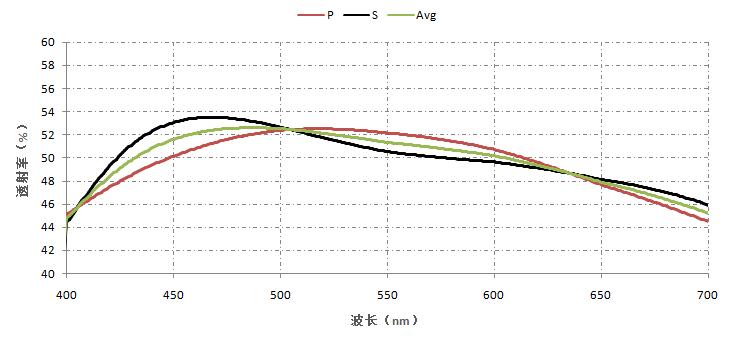

Prism broadband depolarized spectroscopic coating(VIS/NIR)

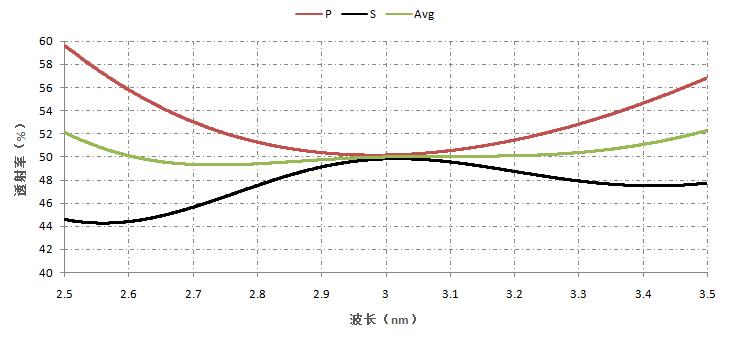

Flat depolarized spectroscopic coating(IR)
