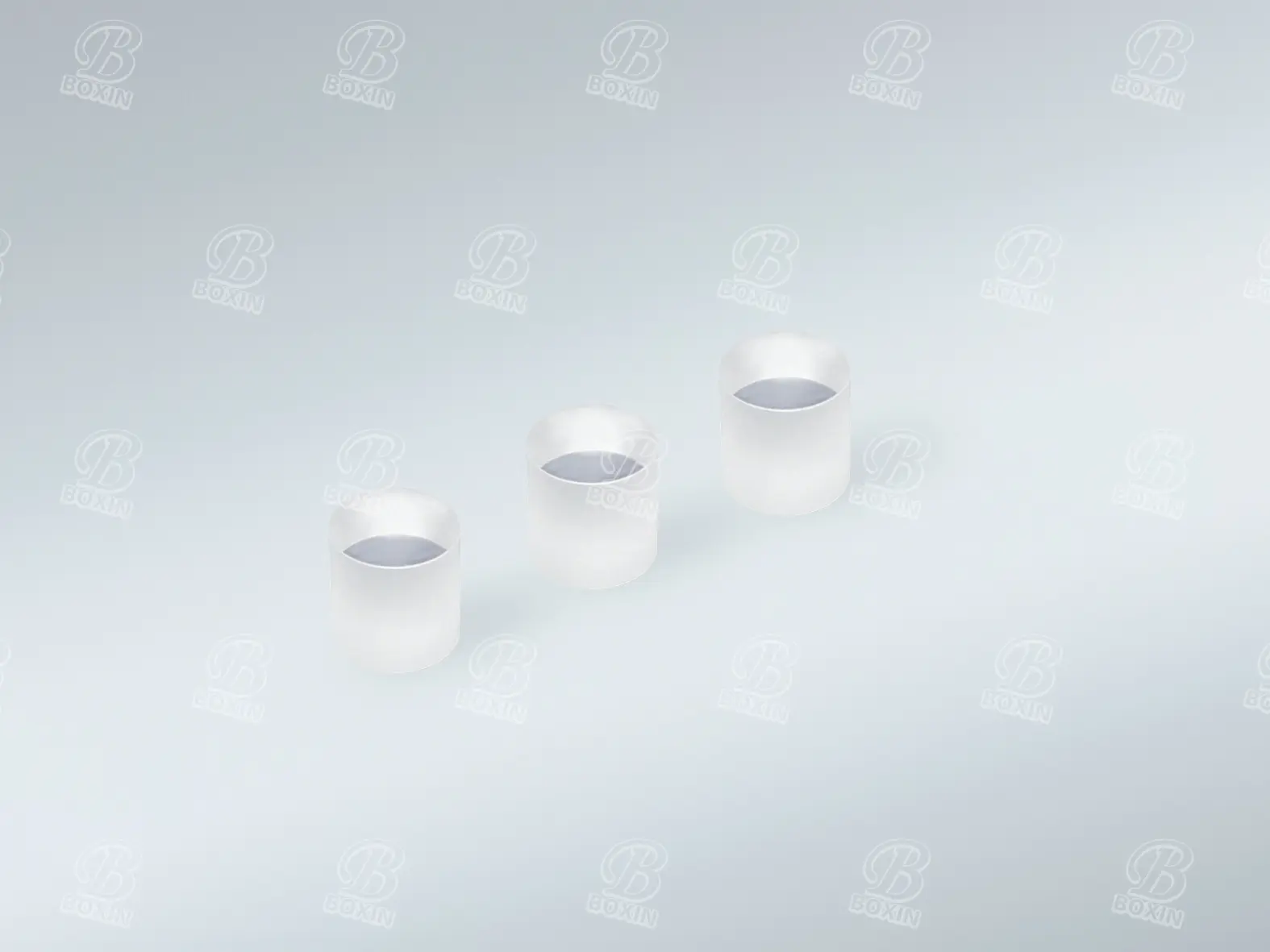

Cylindrical Lens has a curvature on one dimension and designed for focusing light source into one-dimensional shape. In other words, to change the way of the light source in an optical system and turns it to a linear light source. The cylindrical lens can be used to correct astigmatism of an optical system. It is widely used in high precision measuring instruments and devices such as the high-power and long distance linear interferometer. Cylindrical lens is also often used in Synchrotron Radiation Beamlines, Barcode Scanning and High-power Laser system etc. Boxin supplies cylindrical lenses in a various types of materials in order to meet customer’s demands, including Optical Glasses, Laser Crystal, Fused Silica, Radiation Resistant Glasses, IR & UV Materials and Metal Materials, e.g., SiO₂,CaF₂,BaF₂,ZnSe and ZnS etc.
Boxin owns more than 100 sets of CNC cylindrical lens grinding and polishing machines; meanwhile, we also have 40 sets of traditional polishing machines.
In terms of accuracy inspection, Boxin adopts ZYGO laser interferometer equips with diffractive lenses for different radii of cylindrical products. Moreover, for generatrix, perpendicularity, and bevel angle, Boxin has a self-developed a cylindrical lens inspection equipment.
The processing materials for Boxin cylindrical lenses covered Visible Light, Near IR, Far IR, etc. Processing range is extensive, from 2mm to 1200mm in length, and width is up to 650 mm.
Annually, Boxin supplies 2,000,000 pieces of cylindrical lenses to customers worldwide.
| Materials: Optical Glasses,Laser Crystal,Fused Silica,Radiation Resistant Glasses,IR & UV Materials,Metal Materials,e.g., SiO₂, CaF₂, BaF₂, ZnSe and ZnS etc. | Radius Range (mm): R2～R∞ |
| Dimension Range (mm): 2～1200 (Max width : 650mm) | Dimension Tolerance (mm): ±0.01 ～±0.2 |
| Thickness Tolerance (mm): ±0.01 ～±0.2 | Scratch & Dig: 10/5～80/50 |
| PV: λ/20～λ/2 / Φ100 mm | Centration: 30″～5′ (or Δt ≤0.02) |
| Clear Aperture: >90% | Manufacturing Capability: 2,000,000 pieces/year |
| Coating: Customizable (For details, please refer to Boxin Optical Coating.) |

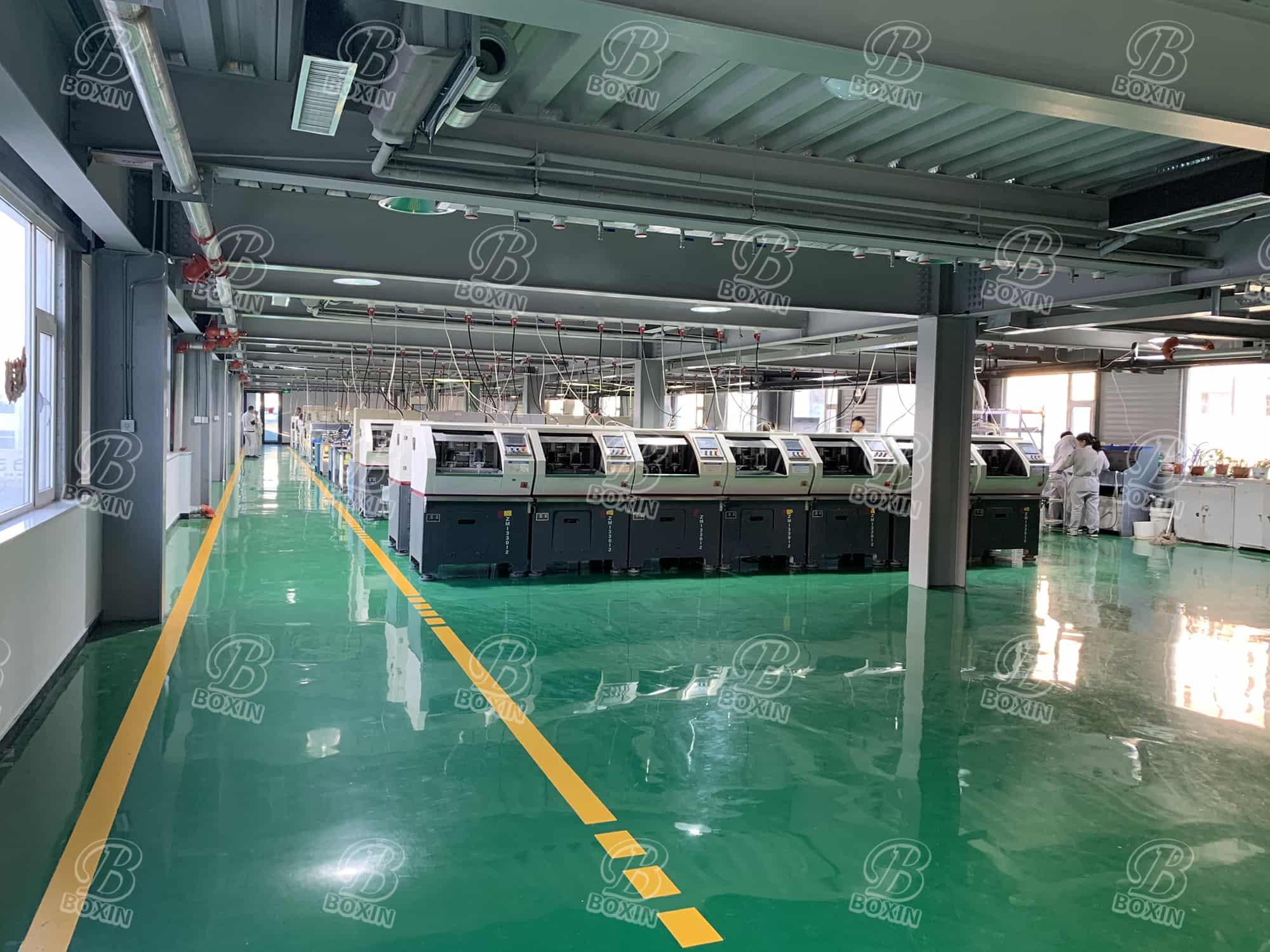

Cylindrical Lenses Workshop
Boxin has an outstanding reputation among the customers in processing capabilities for optical Lenses, and our cylindrical lenses custom capability has reached the top level in the industry and based on customers’ demands. We own more than 100 sets of CNC Cylindrical Lens Grinding and Polishing machines and over 40 traditional Polishing machines.
Coating Workshop
Boxin has been continuously upgrading its coating facilities. At present, Boxin has 10 sets of advanced local and foreign made coating machines and customize various optical coating layers according to customer inquiries.
